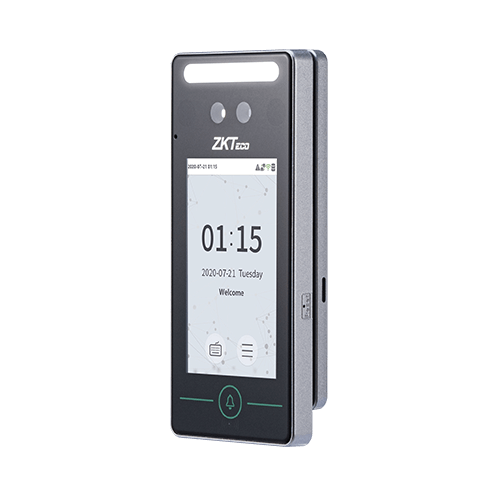

Linux-Based Hybrid-Biometric Access Control &Time and Attendance Terminal with Visible Light Facial Recognition & Palm Recognition (Customized)

· Visible Light Facial Recognition

· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack

Parameters

• Model

  SpeedFace-V4L

• Display

  4″ ISP LCD Touch Screen (480*800)

• Camera

  Binocular Camera@ 2MP

• Operation System

  Linux

• Hardware

  900MHz Dual Core CPU; 512MB RAM / 512 MB ROM; 2MP Binocular Camera;
  Adjustable LED Supplement Lighting

• Authentication Method

  Face / Palm (Customized) / Card / Password (Virtual Keypad)

• Fingerprint Template Capacity

  /

• Face Template Capacity

  1,000 (1:N) (Optional:2,000)
  1,000 (1:1) (Optional:2,000)

• Palm Template Capacity

  1000 (1:N) (Customized)

• Card Capacity

  1,000 (Optional:2,000)

• Transaction Capacity

  150,000

• Biometric Verification Speed

  less than 1 sec (Facial Recognition)
  less than 0.35 Sec (Palm Recognition)

• Touchless Biometric Recognition Distance

  1cm to 100cm (Facial Recognition)
  Up to 50cm (Palm Recognition) (Customized)

• False Acceptance Rate (FAR) %

  FAR ≤ 0.01% (Visible Light Facial Recognition)
  FAR ≤ 0.05% (ZKPalm V12.0)

• False Rejection Rate (FRR) %

  FRR ≤ 0.02% (Visible Light Facial Recognition)
  FRR ≤ 1.8% (ZKPalm V12.0)

• Biometric Algorithm

  ZKFace V3.9
  ArmaturaPalm

• Card Type

  ID Card@125 kHz (Standard)
  13.56MHz IC Card (Optional)
  HID card (Optional)
  Felica card (Optional)

• QR Code

  Dynamic or Static QR codes on the ZKBio CVAccess mobile application QR code

• Communication

  TCP/IP*1, USB Host*1, Wi-Fi (Optional), Wiegand Input*1, Wiegand Output*1, RS485 *1*, 3rd-party Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, Aux Input*1

• Standard Functions

  ID Card, ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods

• Power Supply

  DC 12V 3A

• Operating Temperature

  0°C ~ 45°C (32°F ~ 113°F)

• Operating Humidity

  10% to 90% RH (Non-condensing)

• Dimension

  157.94*72.94*23 mm (L*W*H)

• Gross Weight

  0.26 kg

• Net Weight

  0.85 kg

• Supported Software

  Software: ZKBio CVAccess
  Mobile App: ZSmart
  Cloud Service: ZKBio Zlink

• Installation

  Wall-mount

• Certifications

  ISO14001, ISO9001, CE, FCC
